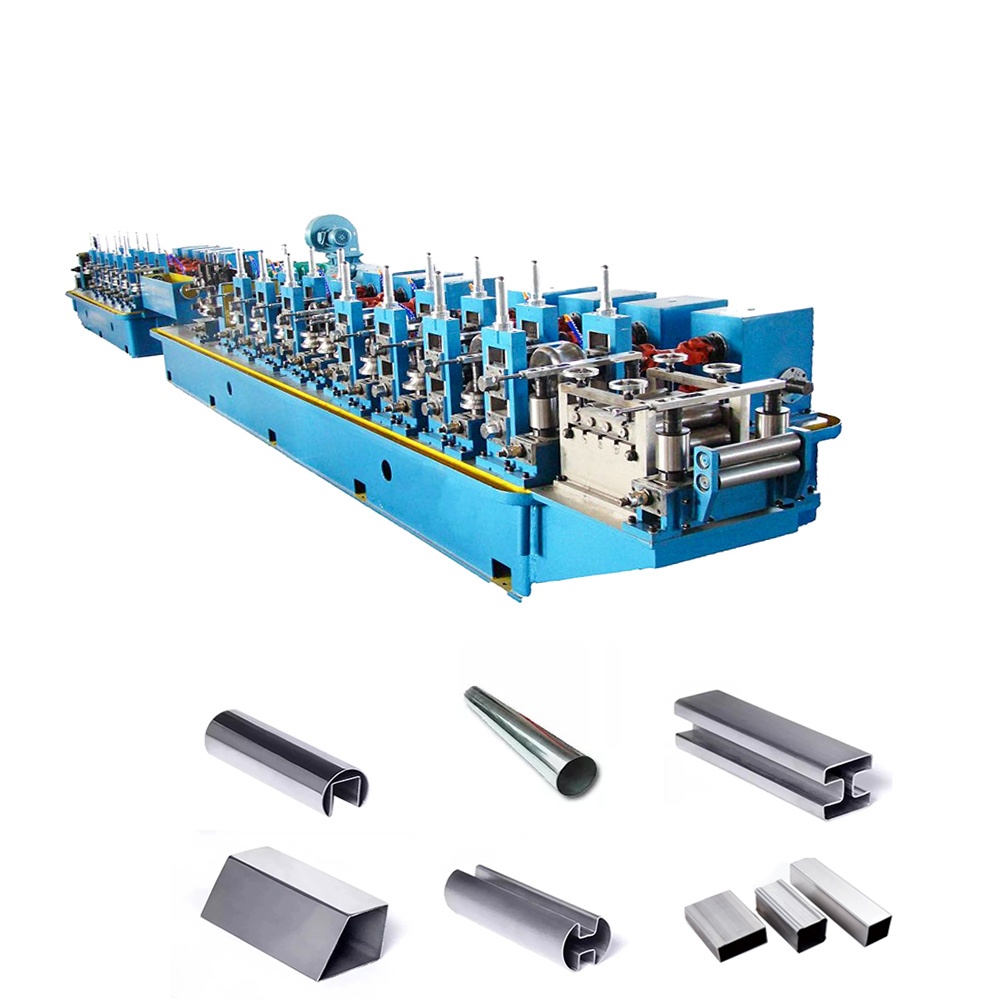

wholesale carbon steel erw pipe making machine

Products

wholesale carbon steel erw pipe making machine

Product No.:2023426154814

Whatsapp: 0086-13612594131

WeChat: 0086-13612594131

Wechat
  • Details

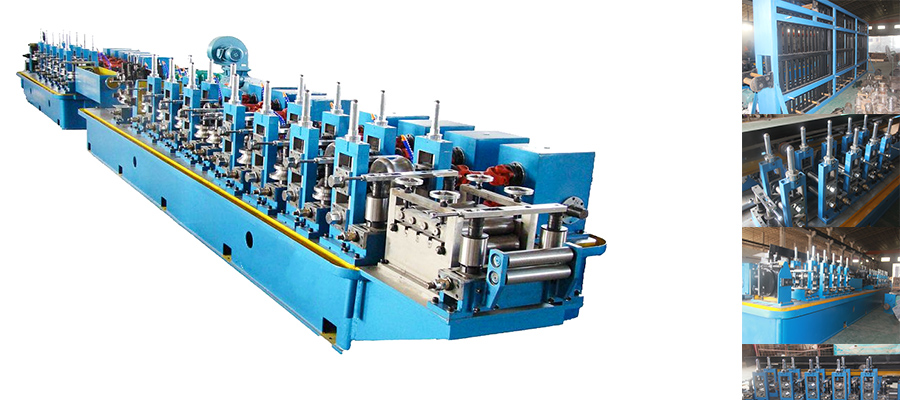

High frequency welded tube mill production line adopts advanced pass technology, PLC automatic control system, with stable operation, convenient operation and repair, and reached the advanced level in the same industry in the structure and accuracy. Equipment from the material to tube run out, the speed adjusts according to the tube specification changing.

High frequency pipe making machine can make tube: ms tubes, iron tubes, GI tubes;
production capacity is more than 300-500 tons per month; the speed is 30-120m/min and using the electricity to weld.







High frequency tube mill structure diagram:





ERW pipe making machine Working Flow:

Raw material (steel strip coil) →uncoiling→shear and butt-welder→material accumulating→passively leveling→forming machine→high frequency welding →remove the burrs outside→cooling →sizing machine→straightening→fixed length cutting →run out table→finished tube




Model

Shape

Diameter (mm)

Thickness(mm)

Total Power(kw)

Production Speed(m/min)

CT16

Round

7-25

0.18-1.0

145

20-120

Square

6*6-20*20

0.18-0.5

CT20

Round

8-32

0.2-1.2

150

20-120

Square

10*10-25*25

0.2-0.6

CT25

Round

8-38

0.3-1.5

160

20-100

Square

10*10-30*30

0.3-0.8

CT28

Round

10-50.8

0.4-1.8

200

20-100

Square

10*10-40*40

0.4-1.2

CT32

Round

16-63.5

0.4-2.5

290

20-120

Square

15*15-50*50

0.4-1.8

CT45

Round

16-76

0.5-2.5

370

20-120

Square

15*15-60*60

0.5-2.0

CT50

Round

19-76

0.5-3.25

400

20-100

Square

20*20-60*60

0.5-2.5

CT50K95

Round

20-95

0.6-3.25

400

20-100

Square

20*20-50*100

0.6-2.5

CT60

Round

19-76

0.6-3.5

400

20-90

Square

15*15-40*80

0.6-2.75

CT60K95

Round

20-95

0.6-3.5

430

20-80

Square

20*20-50*100

0.6-2.75

CT76

Round

19-76

0.6-3.5

540

20-70

Square

15*15-40*80

0.6-3.0

CT76K102

Round

22-102

0.8-3.5

540

20-80

Square

20*20-50*100

0.8-3.0

CT76K114

Round

38-114

0.8-3.5

550

20-90

Square

20*20-80*80

0.8-3.0

CT89K127

Round

48-127

0.8-3.5

660

20-90

Square

40*40-100*100

0.8-3.0

CT114K140

Round

60-140

0.8-4.0

760

20-60


The Application range of erw pipe making machine are widely used in construction, automobiles, street lamps, furniture, air conditioners, refrigerators, home (clothes hangers, mops), electric vehicles and other vehicles, decorative pipes, threading pipes, oil pipes, shelf pipes and other fields.

high frequency welded tube mill can produce below pipe

1. Oil & Gas Pipes                                                      7. Wire and Cable Protection Pipe

2. Heating Pipe                                                          8. Structural Support Steel Pipe
3. Low-pressure Process Pipeline                                 9. Industrial Steel Pipes
4. Low Pressure Fire Fighting Pipeline                          10. Decoration Pipe
5. Sewage Pipes                                                        11. Water Pipe
6. Steel Scaffolding Pipe                                             12. Building pipe
